Ultra-Low Power 42-Inch E Ink Display for Airports & Exhibitions Ideal Billboard Solution

DMPH420EC1
The DMPH420EC1 is a 42-inch high-resolution 2160 x 2880 monochrome E Ink display designed for indoor and outdoor digital signage applications. This product boasts eco-friendliness, ultra-low power consumption, and a paper-like visual experience.
Price:
USD
$4599.00
Quantity:
-
+
(1 available)
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
Please select the information you wantX
  • Description
  • Reviews

42" Monochrome E Ink Sign

Our 42-inch E Ink display brings you a stunning paper-like look, indoors or in bright sun. It’s ultra-low power—so you can place it anywhere, no outlet needed!

Just update your content over WiFi or USB, and enjoy a crystal-clear, eye-friendly screen that looks nothing like traditional LCD. Perfect for malls, airports, and modern workspaces. Go green, go glam, go glare-free!



Core Advantages

Radical Power Efficiency

  • Ultra-Low Power Draw: Consumes only 6.1W during operation and <0.01W on standby
  • Business Benefit: Ideal for solar-powered, off-grid deployments and supports ESG goals

Bistable Display Technology

  • Always-On Visibility: Retains the last image perfectly even without power
  • Business Benefit: Guarantees 100% uptime for your communications without energy waste

Deployment Flexibility

  • Wireless Freedom: Built-in battery and supports Wi-Fi, USB, and 4G/LTE
  • Business Benefit: Install anywhere and update content remotely




Technical Specifications

Display Parameters

Part Number DMPH420EC1
Screen Size 42 inch
Screen Type Black and white E Ink screen
Screen Resolution 2880x2160
Grayscale 16 levels of grayscale

Port Specification

USB2.0 One HOST, one OTG
HDMI-OUT 1 (for internal debugging)
RJ45 1 (10M/100M adaptive)
TF Reserved (maximum expansion of 128GB)
Keys POWER, UP, DOWN, RESET

Power Specification

Power Supply: 5V Type-C interface
Refresh Power ≤6.1W
Standby Power ≤0.01W
Built-in Battery Lithium battery

Software Specification

Image Update Time 2s
Image Update Method USB or WiFi
Language Synchronizes with mobile phone language
Weight Approximately 11.5kg
Dimensions 896.2x682x35.5mm

Mainboard Specification

Operating Temperature 0~50°C
Storage Temperature   -25~60°C
Relative humidity 30%~90%
Altitude 0 ~ 3000 m

Temp & Humidity Specification

Power Supply Built-in lithium battery,Capacity: 50.4W/H, 16.8V/3500MAH
Mains power Type-c interface (supports PD protocol)
Mains power Type-c interface (supports PD protocol)

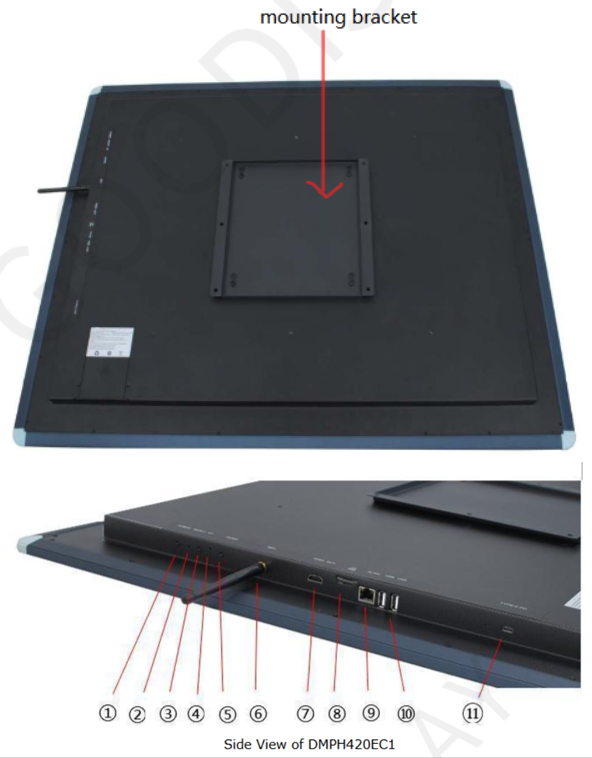

Structure Diagram Details






















  • 1 USB 2.0 Port (Type-A): For inserting a USB flash drive to upload/update display content. FAT32 format recommended.
  • 2 USB 2.0 OTG Port: Used for mainboard debugging and firmware upgrades. OTG function can be toggled via long-press of [DOWN] key.
  • 3 Ethernet Port (RJ45): 10/100 Mbps LAN port for wired network connectivity.
  • 4 microSD (TF) Card Slot: Supports inserting a microSD card for additional storage (up to 128 GB).
  • 5 SIM Card Slot: For an optional 4G/LTE module. Insert an IoT (cellular) SIM card here if cellular data is required.
  • 6 HDMI Output: Connect an external monitor to output the Android mainboard's display content.
  • 7 Wi-Fi/4G Antenna Connector: SMA-style connector for the included antenna (used for Wi-Fi and 4G signals).
  • 8 USB-C (PD) Power Input: Used to connect the external 12–20 V DC power supply (USB-C PD adapter, optional).

Android WiFi Control App

WiFi Control App

Wireless Management Made Simple

Our intuitive Android app allows you to configure and control your E-Ink displays seamlessly via WiFi connection. Update content, manage multiple devices, and monitor status from anywhere.


Download Control App

Note: WiFi functionality requires USB cable power supply. For optimal performance, ensure your device is connected to a stable power source during updates.

Sustainable Technology

Paperless Future

Each display saves ≈3,000 sheets annually. Join 15,000+ businesses reducing paper waste with ePaper solutions.

Sustainable Packaging

95% recycled materials with FSC-certified packaging. 100% plastic-free protective materials.

Energy Leadership

90% less energy than LCDs. Annual CO₂ reduction equivalent to 50 mature trees.

Why GooDisplay E-Paper Refreshes Faster



Optimized Fast-Refresh FPL

We rigorously select fast-refresh FPL films at the raw material level, laying a solid hardware foundation for high-speed performance.



Smart Temp-Controlled Drive

 Our engineers optimize waveform files for different temperature ranges, ensuring excellent display quality even during rapid refresh cycles.





Chip-Level Integrated Solution

Optimized waveforms are built into the display driver chip—activate fast refresh mode with a simple code call!

Display Type Refresh Capability Available Sizes
Black & White (B/W) Displays Supports fast refresh, partial refresh, and 4-level grayscale 0.97" to 10.3"
Black, White & Red (BWR) Displays Supports fast refresh and partial B/W refresh 2.13" to 11.6"
Black, White, Red & Yellow (BWRY) Displays Supports fast refresh with multi-color layered updating 0.97" to 11.6"
